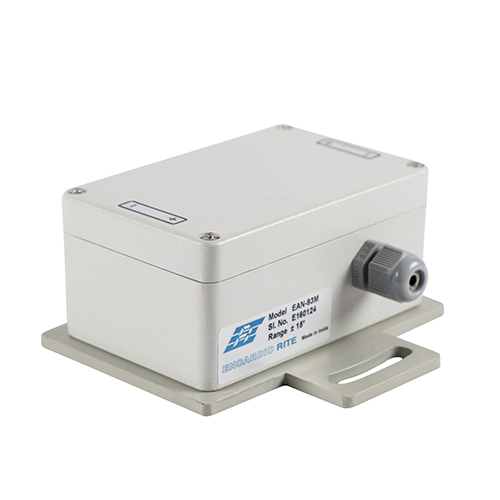

EAN-93M digital singleaxis tilt meter
Model EAN-93M box type digital tilt meter consists of uniaxial MEMS sensor mounted inside a compact, weatherproof enclosure. These tilt meters are suitable for monitoring small changes in inclination and vertical rotation of structures. The tilt meters provide a relatively low cost system which offers excellent resolution and long term stability Model EAN-93M tilt meter […]

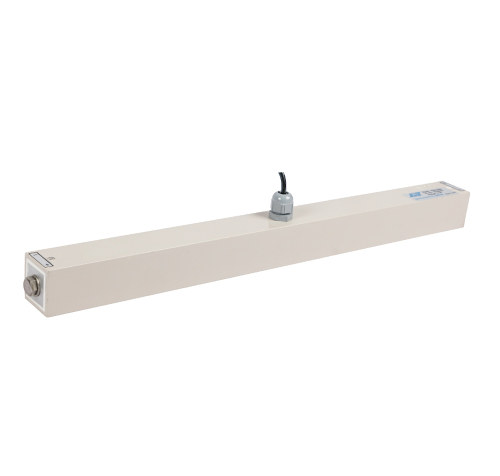

EAN-41M beam tilt meter
The Encardio-rite model EAN-41M/EAN-42M beam sensor consists of MEMS tilt sensorhoused inside a beam, which can be 1 m, 2 m, or 3 m long. It is attached to the structures for monitoring any differential movement and tilting of structures Model EAN-41M comes with voltage output, while model EAN-42M is a digital beam sensor.The sensors […]

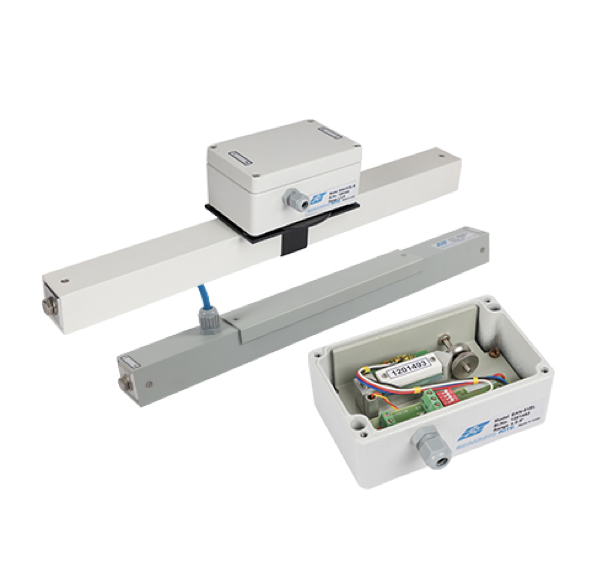

EAN-31EL/EL-B accurate electrolytic tilt meter
Model EAN-31EL | Electrolytic Uniaxial Tilt Meters The EAN-31EL tilt sensor are designed for measuring very small tilts, of the order of half a degree, with a high resolution. It is designed to monitor rotation and deflection of structures such as buildings, retaining walls etc. in a vertical plane. These are rugged and high-resolution tilt […]

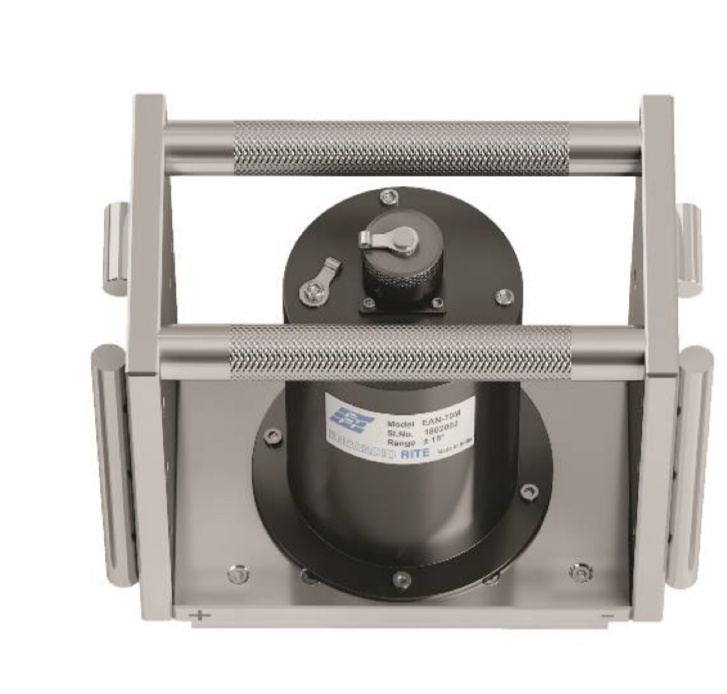

EAN-70M portable tilt meter
The EAN-70M portable tilt meter incorporates a sensor based on precision MEMS accelerometer technology. It is housed in a rugged frame with machined surfaces that facilitate accurate positioning on the tilt plate. This portable tilt meter is suitable for monitoring change in the inclination of a structure. It has excellent temperature stability. The tiltmeter system […]

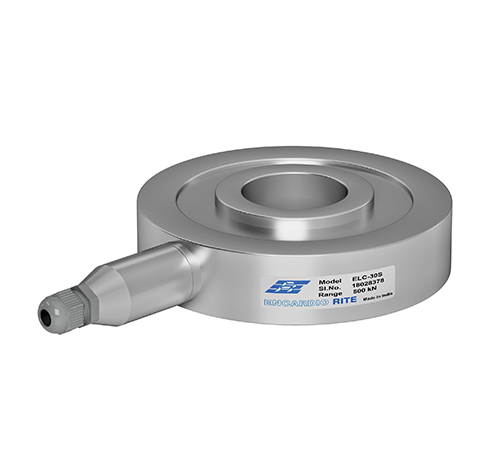

ELC-70S center hole load cell
The ELC-30S is a resistive strain gage type load cell. It is used to determine load in rock bolts, tieback anchors etc through a centre hole. It is based on Wheatstone bridge principle and has eight 350 Ohm resistance strain gages, wired to form a 700 Ohm bridge, inside a cylinder of high steel strength. […]

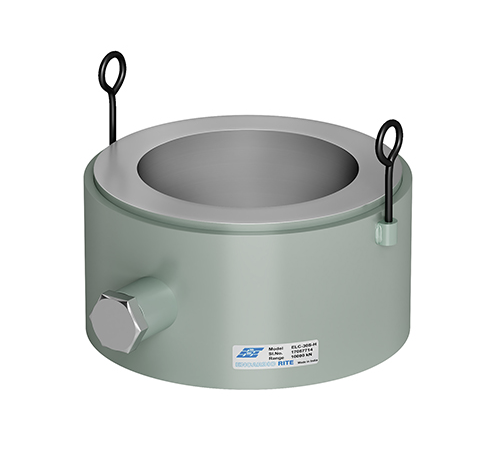

ELC-30-H high capacity center hole load cell
The ELC-30S-H is a high capacity center hole resistive strain gage type load cell. It is used to determine the load in rock bolts, tieback anchors, etc through a center hole. It is similar to the ELC-30S load cell. It comprises of sixteen 350 Ohm resistance strain gages, wired to form a 1400 Ohm bridge, […]

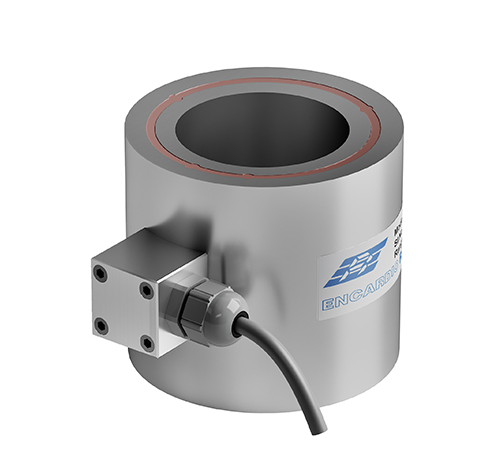

ELC-32V VW center hole load cell
ELC-32V is a vibrating wire type center hole load cell used to determine load in rock bolts, tieback anchors etc. It comprises of a cylinder of high strength martensitic stainless steel with three vibrating wire strain gages mounted at 120 degrees to each other to minimize the effect of uneven and eccentric loading. To determine […]

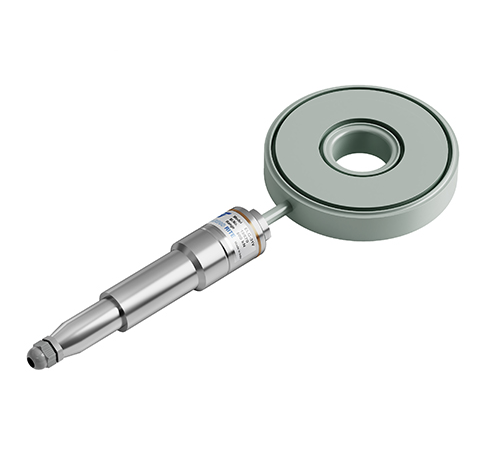

ELC-31V, hydraulic center hole load cell
ELC-31V is a vibrating wire type center hole load cell used to determine the load in rock bolts, tieback anchors, etc. It is filled with fluid with a vibrating wire pressure sensor attached to it, to convert the load into a frequency output. A solid load cell for stress measurement in tunnel supports and struts […]

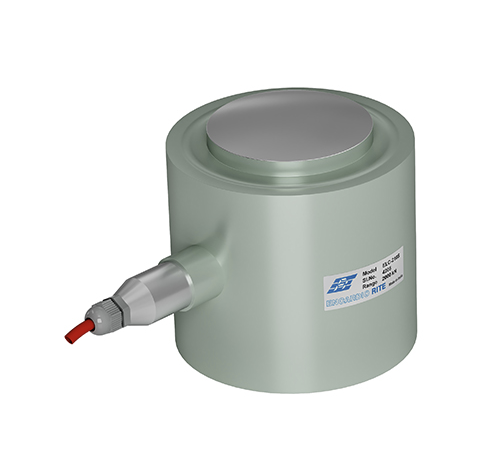

EL-210S, solid load cell
Model ELC-210S compression load cell is a heavy duty precision load cell. Specially designed to meet the increasing demand in load measurement with a high degree of accuracy and reliability, the load cell is ideally suited for measurement of compressive load or forces in struts application. The load cell is available in capacities ranging from […]

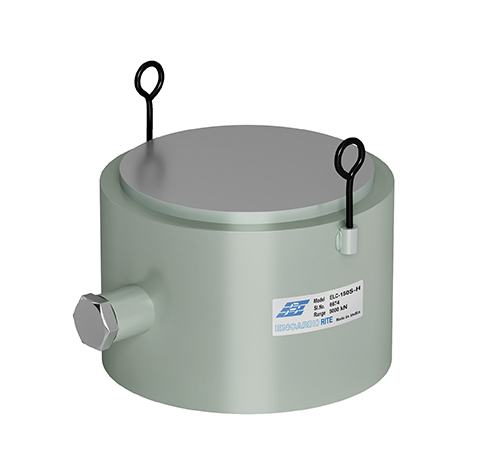

ELC-150S-H high capacity compression load cell
ELC-150S-H is a resistive strain gage type load cell. It is designed to measure large compressive load or axial forces. The load cell is used extensively in pile testing. This load cell is similar to the ELC-210S. It has great resistance to extraneous forces and is protected against dust, moisture, and adverse environmental conditions. This […]

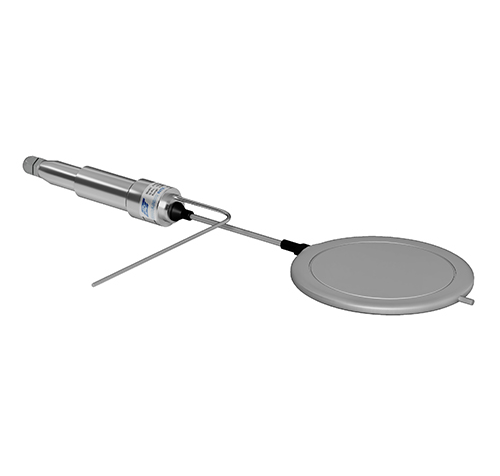

ELC-30V-C concrete load cell
The EPS-30V-C is a concrete pressure cell designed to be installed in concrete. This sensor is similar to the EPS-30V-S cell, except having a 600 mm long pinch tube. The purpose of the pinch tube comes when the concrete is cured. To ensure proper contact between the pressure pad and the surrounding concrete, the pinch […]

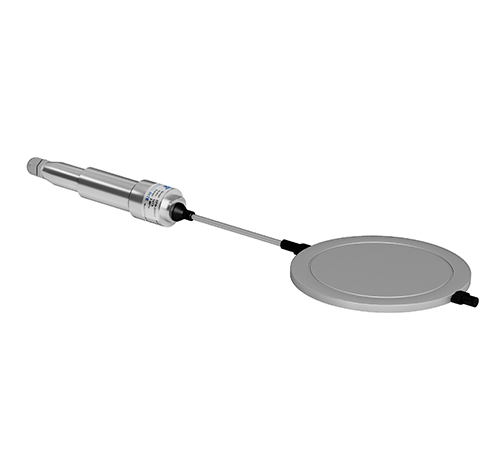

ELC-30V-S earth pressure cell
The EPS-30V-S earth pressure cell is used to measure total pressure in the earth fills and embankments. Two stainless steel discs welded around the periphery forms a flexible, circular and flat pressure pad. The pressure pad is connected to an electron beam welded vibrating wire pressure sensor with a 6 mm diameter x 165 mm […]

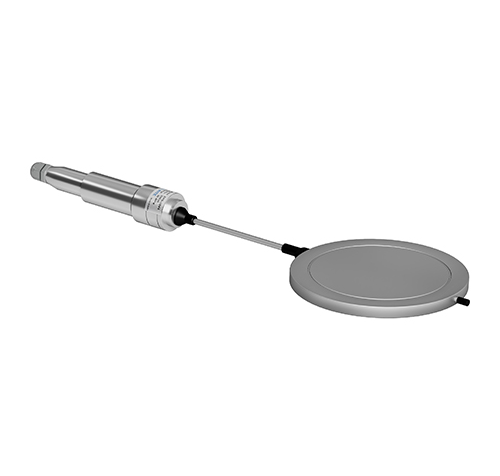

EPS-30V-I soil-rock interface pressure cell
The EPS-30V-I interface pressure cell is used to measure pressure between soil and rock or concrete interfaces. The pressure cell is designed similarly as EPS-30V-S, except a thicker diaphragm on rock/concrete side of the pressure pad, which minimizes point-loading effects.

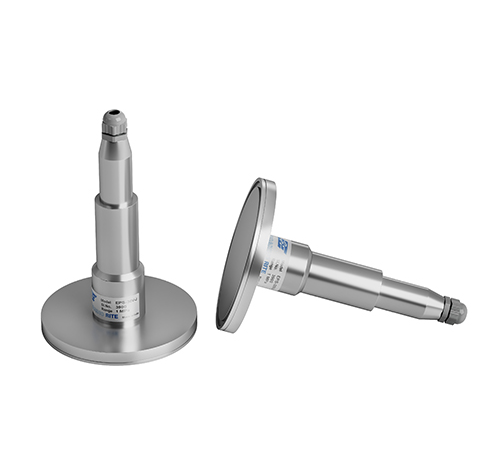

EPS-30-V-J jack out pressure cell
The EPS-30V-J jack out pressure cell has been designed to measure the stress on base slabs, diaphragm/slurry walls etc. Construction of a jack out pressures cell is a combination of a thin, flexible, round, flat diaphragm and a thick and rigid back plate. The plates are welded around the periphery leaving a very little gap […]

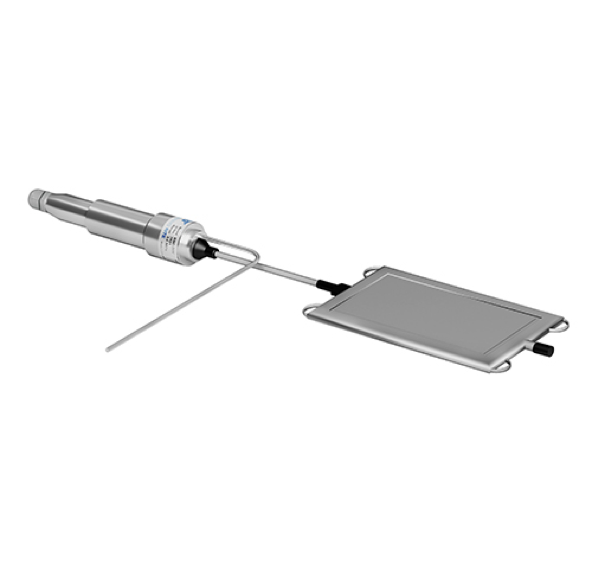

ESC-30V-I short concrete pressure cell
ESC-30V is used to monitor the radial and tangential stresses in the shotcrete of tunnels, particularly where the New Austrian Tunnelling Method and underground works are being implemented. Measurement of radial and tangential stresses within shotcrete lining is a vital feature of this type of stress cell. The stress cell has a rectangular pressure pad […]

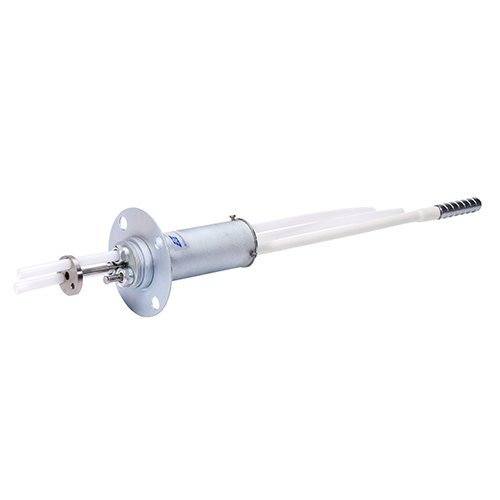

EDS-64-U-D mechanical single point borehole extensometer
EDS-64U-D is a single point borehole extensometer which is preferred to use at the locations where access to the mouth of borehole is easily available. This borehole extensometer is suitable for a 50 mm borehole.

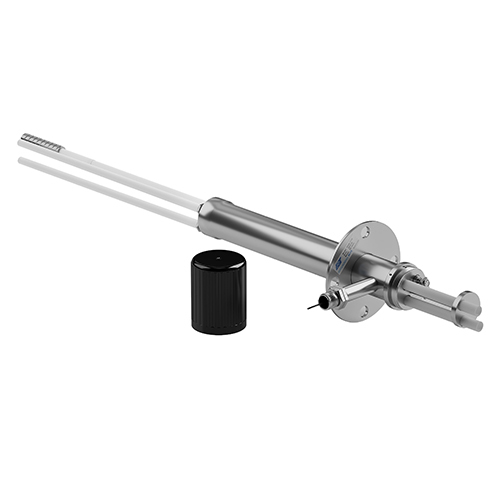

EDS-71V/72P electrical single point borehole ekstensometer
EDS-71V/EDS-71P is a single point borehole extensometer. It is a key equipment for investigation and monitoring of foundations, slopes, embankments, underground cavities and landslides. This is suitable for 50mm borehole.

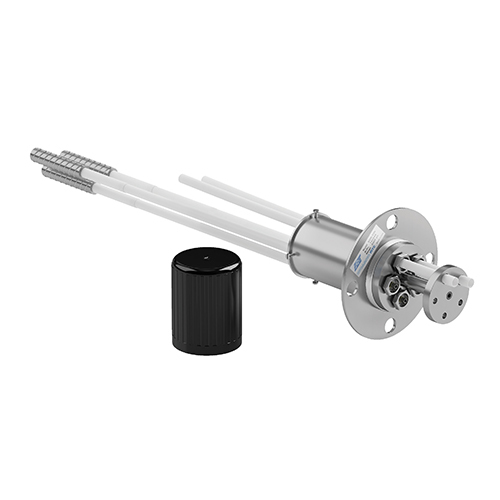

EDS-63U-D MECHANICAL MULTIPOINT BOREHOLE EXTENSOMETER
Model EDS-63U/D is a mechanical multipoint borehole extensometer which is economical, reliable and preferred to use at the locations where access to the mouth of borehole is easily available. The reading are taken manually with a micrometer depth gage. Model EDS-63U suitable for upward borehole, while Model EDS-63D suitable for downward borehole The MPBX essentially […]

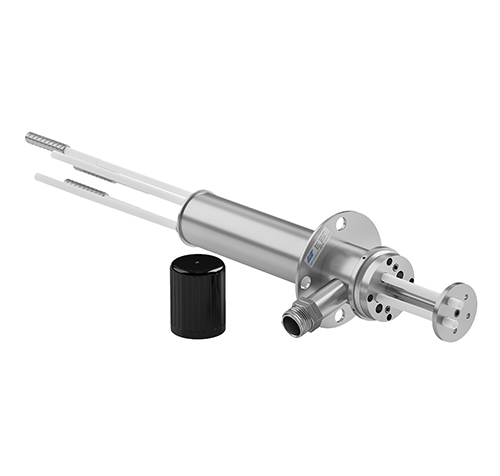

EDS-70V / 70P ELECTRICAL MULTIPOINT BOREHOLE EXTENSOMETER
EDS-70V/EDS-70P Borehole extensometer measures extension that takes place with the time in a bored hole or in several bored holes in a rock mass. This system is similar to the EDS-63U-D, except that the EDS-70V/EDS-70P head assembly uses vibrating wire displacement sensors (the EDE-VXX in the range – 50, 100 or 150 mm). Multi-core cables […]

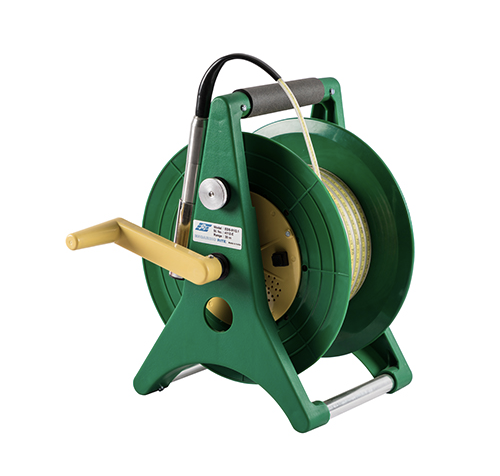

EDS-91 magnetic extensometer
The EDS-91 measures settlement or heave in foundations, embankments, fills, excavations etc. This magnetic settlement recorder is accurate, robust, light weight and convenient to use. The system consists of an access tube, magnet assemblies and a portable magnetic probe with a reed switch. The probe is inserted inside the access tube installed with magnet assemblies […]
